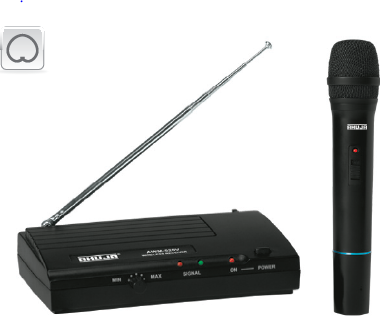

Ahuja AWM-520VH
by
  • Dynamic microphone with a VHF high band transmitter and a sensitive noise squelch receiver.
  • Elegant and affordable single channel VHF wireless microphone available in six different frequencies.
  • Dynamic unidirectional microphone with a three position slide switch and Low Battery LED indicator.
  • Stylish table-top receiver with a telescopic antenna & noise squelch circuitry.
  • Power ON/OFF switch and output volume control on the front panel.
Authorised Dealer
buy now inquire now
Specifications
Brand
Transmitter
RF Output Power 10mW (Max.)
Microphone Element Dynamic, cardioid
Modulation Mode FM
Frequency Response 40Hz-13kHz
Power Requirement 9V Battery
Controls ON/MUTE/OFF Switch
Indication Red LED: Momentary glow for RF ON & Permanent glow for Low Battery
Dimensions P48 x L240 mm
Weight 0.25kg (without battery)
Receiver
Audio Output 0-50mV
Distortion <0.5%
S/N Ratio >80dB
Power Requirement 220V-240V AC 50Hz for AC adaptor (supplied alongwith)
Indication Red LED for Power ON, Green & Red LEDs for Signal
Controls Power Switch, Output Volume Control
Dimensions W152 x H40 x D110 mm
Weight 0.20kg
