Brand

Display Device

Display System	3 LCD system
Size of effective display area	0.99" (25.0 mm) x 3 BrightEra LCD Panel, Aspect ratio: 4:3
Number of pixels	2,359,296 (1024 x 768 x 3) pixels

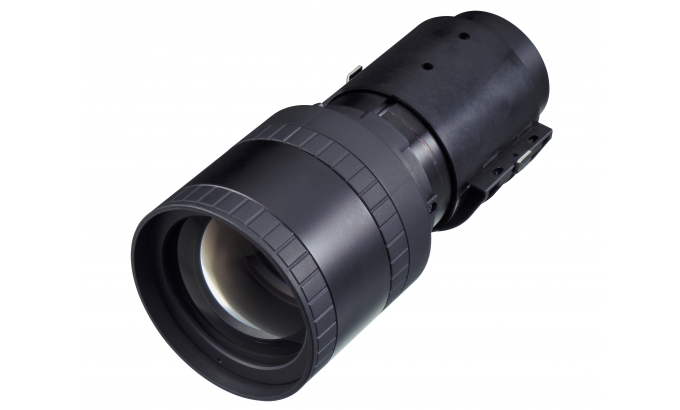

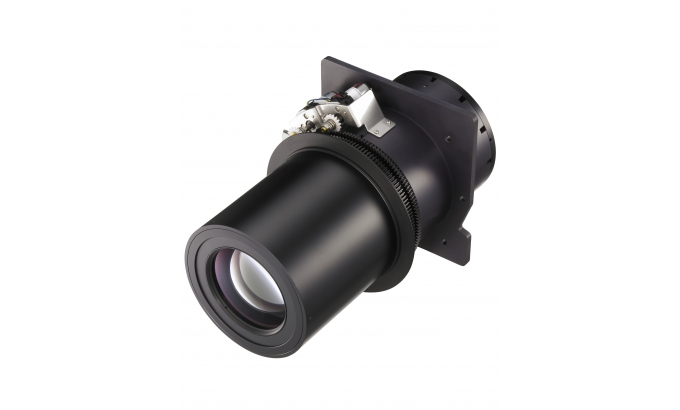

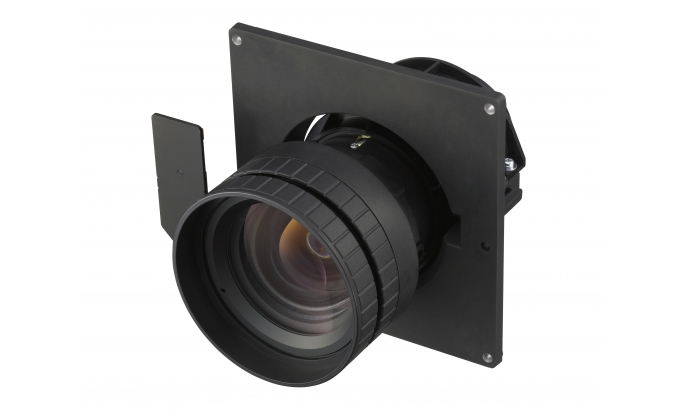

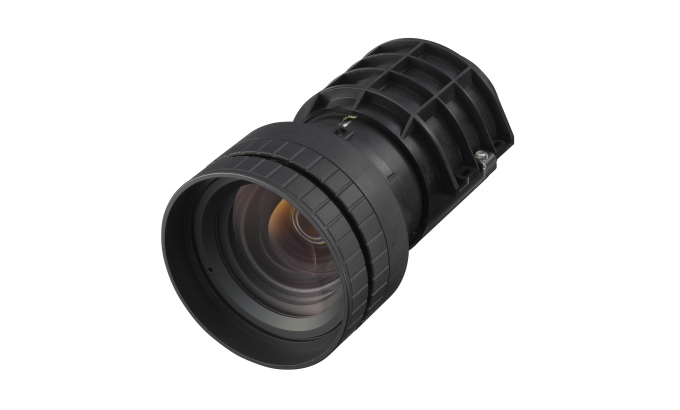

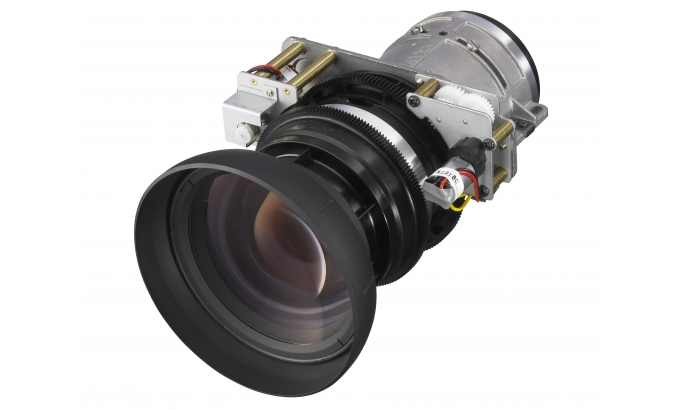

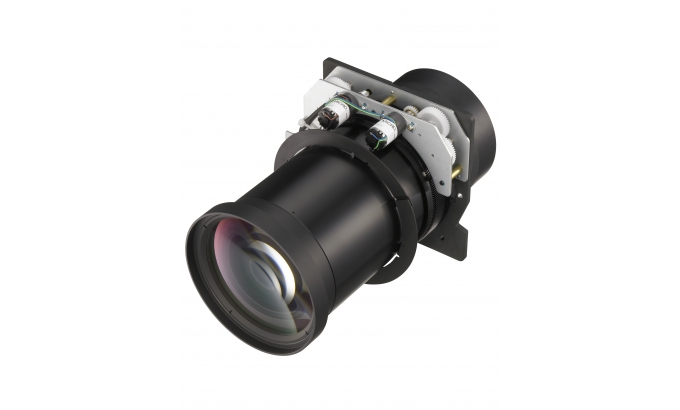

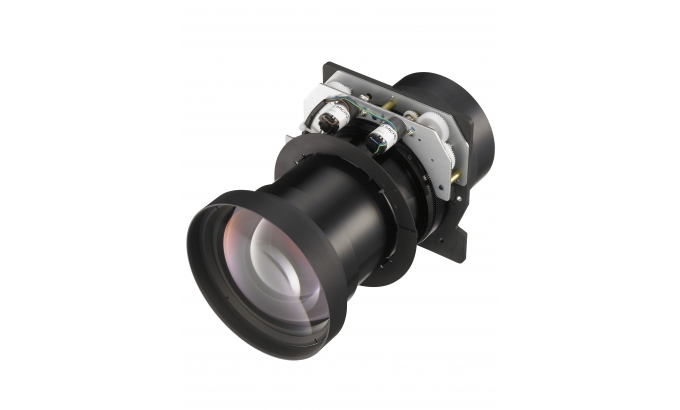

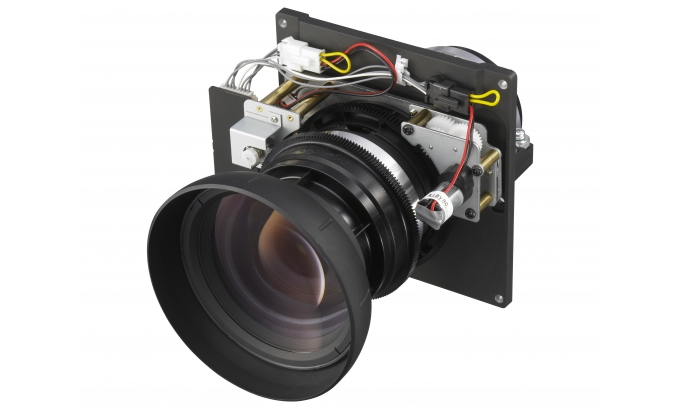

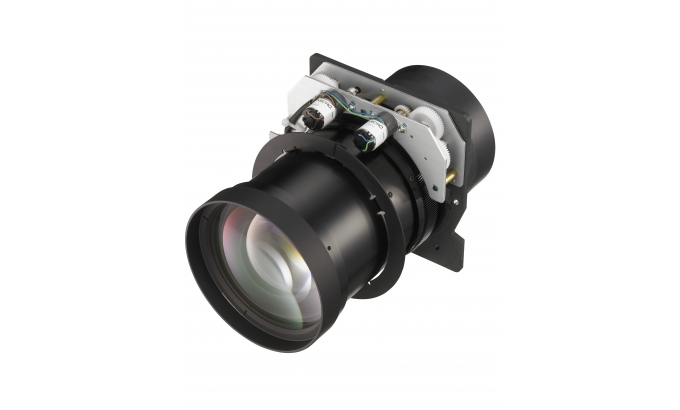

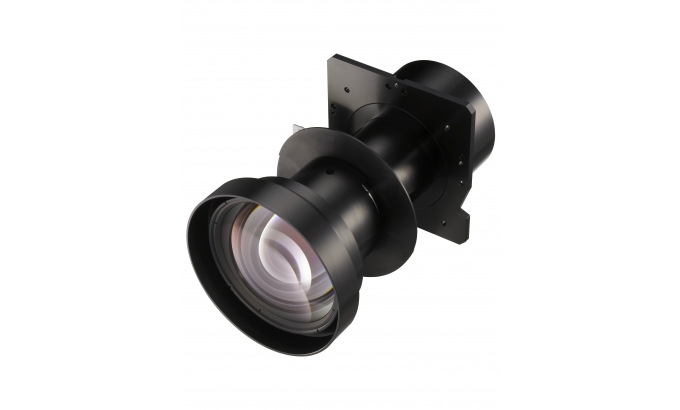

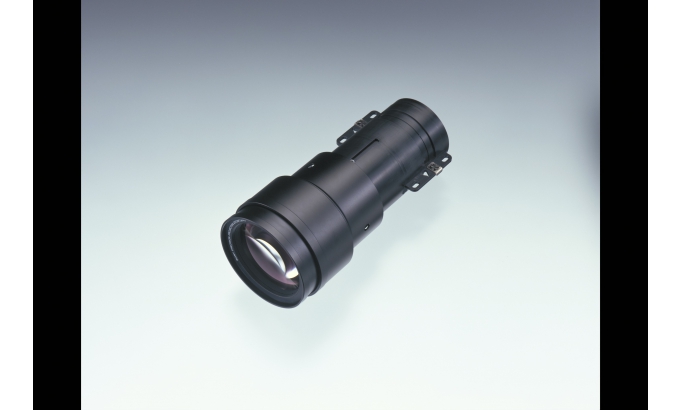

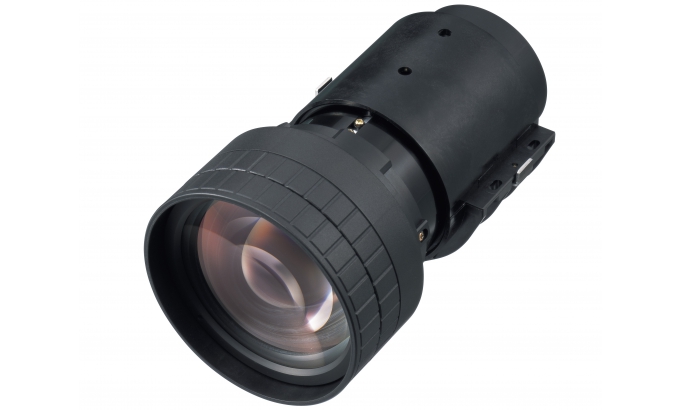

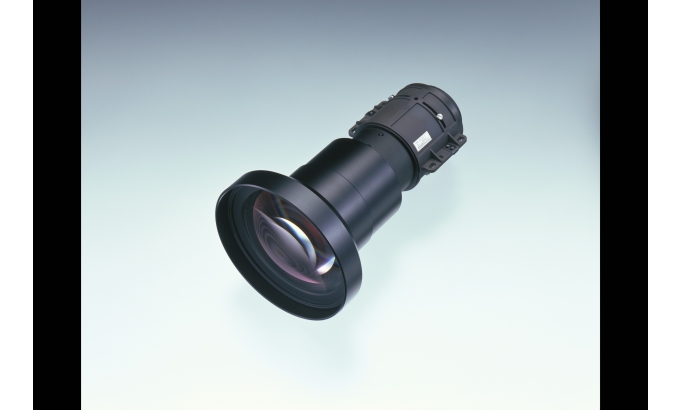

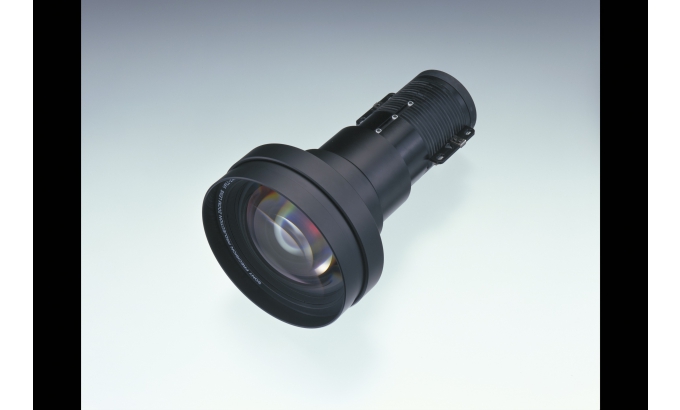

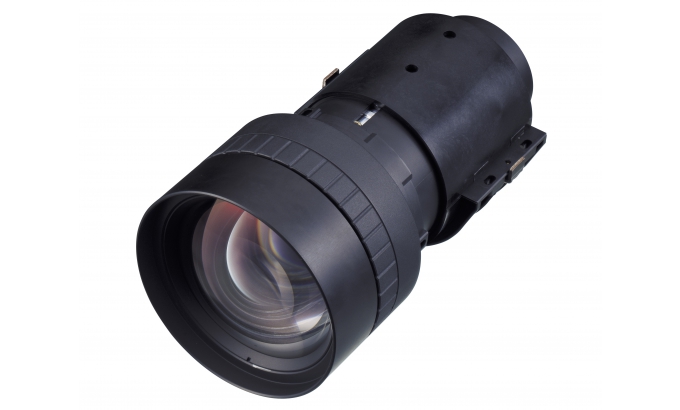

Projection Lens

Focus	Powered / Manual (Depend on lens)
Zoom - Powered/Manual	Powered / Manual (Depend on lens)
Lens Shift	Powered / Manual (Depend on lens)

Light source

Type	Ultra high pressure mercury lamp
Wattage	330 W type
Screen size	40” to 600” (1.02 m to 15.24 m) (measured diagonally) (Depend on lens)

Light output

Lamp mode: High	7000 lm
Lamp mode: Standard	5600 lm

Contrast

Contrast ratio (full white / full black)

2500: 1

Display resolution

Computer signal input	Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input	NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

Keystone Correction

Vertical	47 Hz to 93 Hz
Horizontal	14 kHz to 93 kHz

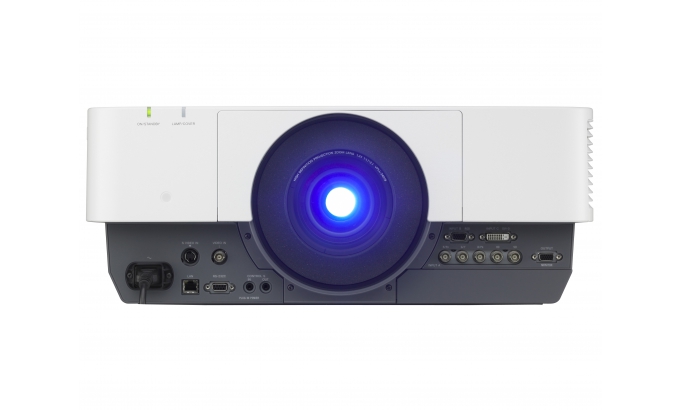

INPUT OUTPUT (Computer/Video/Control)

INPUT A	RGB / Y PB PR input connector: 5BNC (female)
INPUT B	RGB input connector: Mini D-sub 15-pin (female)
INPUT C	DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
S VIDEO IN	S-video input connector: Mini DIN 4-pin
VIDEO IN	Video input connector: BNC
IO Output	Monitor output connector*4: Mini D-sub 15-pin (female)
IO REMOTE	RS-232C connector: D-sub 9-pin (female)
IO LAN	RJ-45, 10BASE-T/100BASE-TX

Acoustic Noise

Lamp mode: Low

31 dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	Approx. 530 x 204 x 545 mm (20 7/8 x 8 1/32 x 21 15/32 inches)
Mass	Approx. 20 kg (44 lb)

Others

Projector Power requirements	AC 100 V to 240 V, 4.8 A to 2.0 A, 50 Hz / 60 Hz

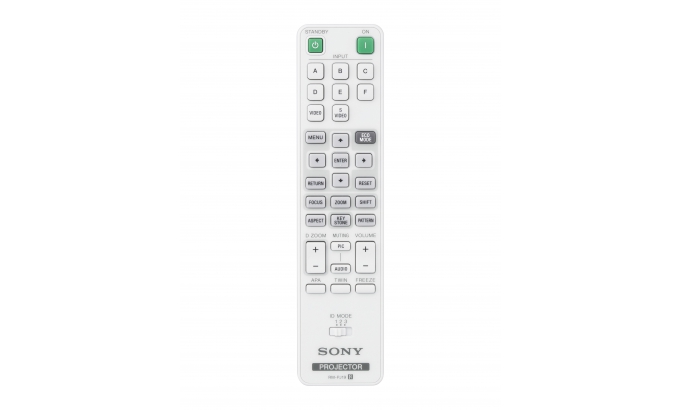

Remote commander	RM-PJ19

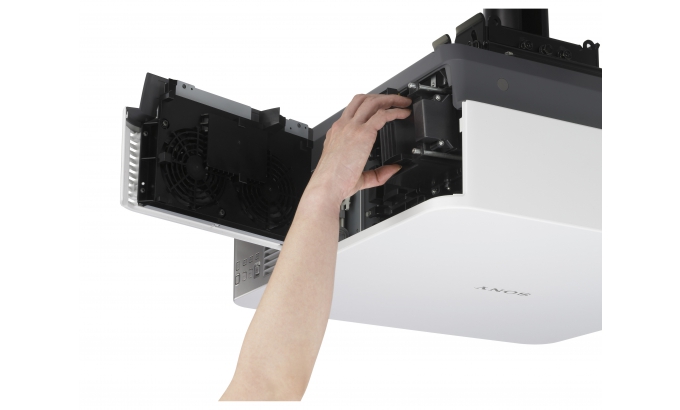

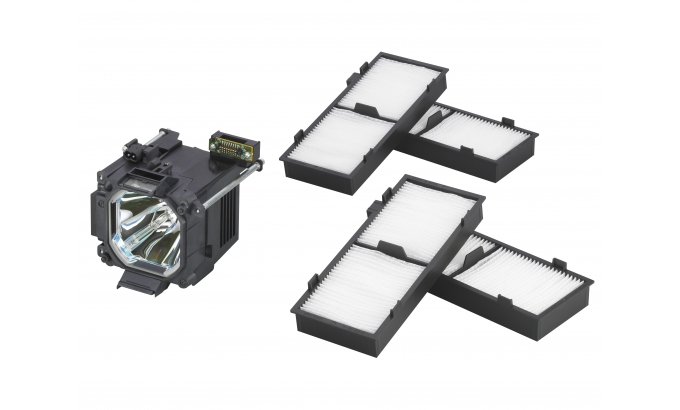

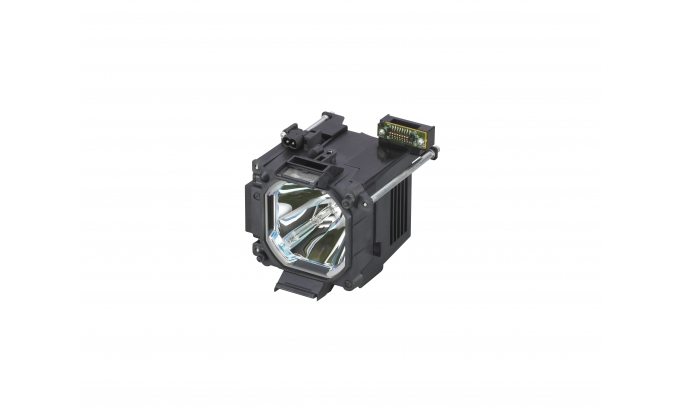

Optional Lamp	LMP-F330
