Brand

Display Device

Display System	3 LCD system
Size of effective display area	0.75” (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels	3,072,000 (1280 x 800 x 3) pixels

Projection Lens

Focus	Manual
Zoom - Powered/Manual	Manual
Zoom - Ratio	Approx. 1.45 x
Lens Shift	Manual
Throw Ratio	1.32:1 to 1.91:1

Light source

Type	Ultra high pressure mercury lamp
Wattage	280 W type
Screen size	40” to 300” (1.02 m to 7.62 m) (measured diagonally)

Light output

Lamp mode: High	5200 lm
Lamp mode: Standard	4200 lm

Contrast

Contrast ratio (full white / full black)

3000:1

Speaker

Speaker

10 W x 1 (monaural)

Display resolution

Computer signal input	Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input	NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

Keystone Correction

Vertical	48 Hz to 92 Hz
Horizontal	19 kHz to 92 kHz

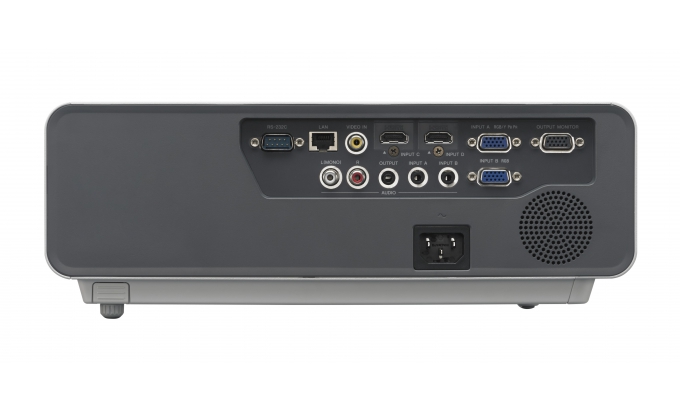

INPUT OUTPUT (Computer/Video/Control)

INPUT A	RGB / Y PB PR input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack
INPUT B	RGB input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack
INPUT C	HDMI input connector: HDMI 19-pin, HDCP support
INPUT D	HDMI input connector: HDMI 19-pin, HDCP support
VIDEO IN	Video input connector: Pin jack Audio input connector: Pin jack (x2)
IO Output	Monitor output connector*4: Mini D-sub 15-pin (female) Audio output connector*5: Stereo mini jack (variable out)
IO REMOTE	D-sub9pin (male)/RS232C
IO LAN	RJ-45, 10BASE-T/100BASE-TX

Acoustic Noise

Lamp mode: Low

34 dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	Approx. 406 × 113 × 330.5 mm (15 31/32 × 4 7/16 × 13 inches)
Mass	Approx. 5.7 kg (13 lb)

Others

Projector Power requirements	AC 100 V to 240 V 4.0 A to 1.7 A, 50/60 Hz
Remote commander	RM-PJ8
Optional Lamp	LMP-C280
