Brand

Display Device

Display System	3 LCD system
Size of effective display area	0.63"(16mm) x 3 Aspect ratio: 4:3
Number of pixels	2,359,296 (1024x768 x 3) pixels

Projection Lens

Focus	Manual
Zoom - Powered/Manual	Optical: Manual (Approx. x 1.2)
Throw Ratio	1.37:1 to 1.80:1

Light source

Type	Ultra high pressure mercury lamp 215 W
Screen size	30” to 300” (0.76 m to 7.62 m)

Light output

Lamp mode: High	3500lm
Lamp mode: Standard	2600lm
Lamp mode: Low	2200lm

Contrast

Contrast ratio (full white / full black)

4000:01:00

Speaker

Speaker

1 W x 1 (monaural)

Display resolution

Computer signal input	Maximum display resolution: UXGA 1600 x 1200 dots*4 Panel display resolution: 1024 x 768 dots
Video signal input	NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i,

Keystone Correction

Vertical	48 Hz to 92 Hz
Horizontal	19 kHz to 92 kHz

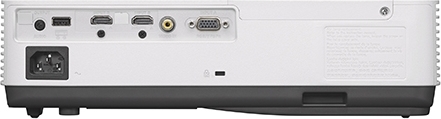

INPUT OUTPUT (Computer/Video/Control)

INPUT A	RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
INPUT B	HDMI input connector: HDMI 19-pin, HDCP support, audio support
INPUT C	HDMI input connector: HDMI 19-pin, HDCP support, audio support
VIDEO IN	Video input connector: Phono jack
IO Output	Audio output connector: Stereo mini jack

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	W 325.1 x H 79.8 x D 230.5 mm
Mass	2.7 kg / 5.9 lb Supplied accessories

Others

Projector Power requirements	5V 2A (USB Type-A)
Remote commander	RM-PJ8 Remote Commander
Optional Lamp	LMP-D214
