Brand

Display Device

Display System	SXRD panel, projection system
Size of effective display area	0.61” x 3
Number of pixels	6,220,800 (1920 x 1080 x 3) pixels

Projection Lens

Focus	Manual
Zoom - Powered/Manual	Manual
Zoom - Ratio	(Approx. x1.6)
Lens Shift	Manual, Vertical: +/- 71%, Horizontal: +/- 25%

Light source

Type	High-pressure mercury lamp, 215 W type
Screen size	40” to 300” (1,016 mm to 7,624 mm)

Light output

Lamp mode: High

1800 lm (Lamp mode: High) *2

Contrast

Contrast ratio (full white / full black)

120,000:1 (Dynamic Contrast)

Display resolution

Computer signal input	Maximum display resolution: 1920 x 1080 dots (HDMI Input only)
Video signal input	480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for HDMI input only. 1080/60p, 1080/50p, 1080/24p

Keystone Correction

Vertical	48 Hz to 92 Hz
Horizontal	19 kHz to 72 kHz

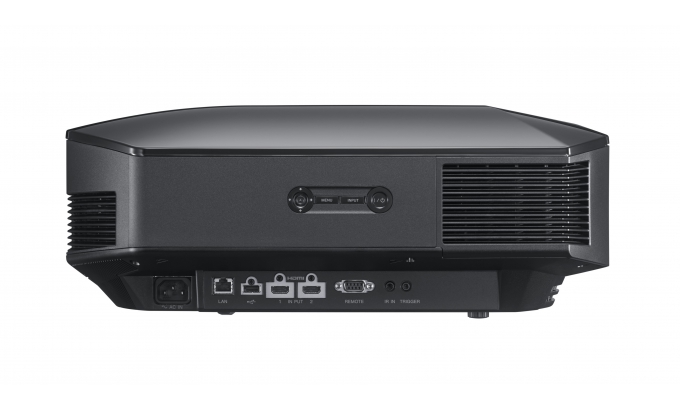

INPUT OUTPUT (Computer/Video/Control)

IO REMOTE	RS-232C, D-sub 9-pin (female)
IO LAN	RJ45, 10Base-T/100BASE-TX
HDMI 1 / HDMI 2	Digital (RGB/Y Pb/Cb Pr/Cr)
IR IN	Mini Jack
Trigger	Minijack, DC 12 V Max. 100 mA

Acoustic Noise

Lamp mode: Low

22 dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	407.4 x 179.2 x 463.9 mm 16 1/8 x 7 1/8 x 18 3/8 inches
Mass	Approx. 9 kg / 20 lb

Others

Projector Power requirements	AC 100 V to 240 V, 3.1 A to 1.3 A,50/60 Hz
Remote commander	RM-PJ28 Remote Commander (1)
Optional Lamp	LMP-H210
