Brand

Display Device

Display System	4K SXRD panel, projection system
Size of effective display area	0.74” x 3
Number of pixels	26,542,080 (4096 x 2160 x 3) pixels

Projection Lens

Focus	Powered
Zoom - Powered/Manual	Powered
Zoom - Ratio	Approx. x2.1
Lens Shift	Powered Vertical: +85% -80% Horizontal: +/-31%

Light source

Type	High-pressure mercury lamp, 280 W type
Screen size	60” to 300” (1,524 mm to 7,620 mm)

Light output

Lamp mode: High

1800 lm (Lamp mode: High) *2

Contrast

Contrast ratio (full white / full black)

300,000:1

Display resolution

Computer signal input	Maximum display resolution: 1920 x 1080 dots (HDMI Input only)
Video signal input	480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p*3, 3840 x 2160/60p*3, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p*3, 4096 x 2160/60p*3

Keystone Correction

Vertical	48 Hz to 92 Hz
Horizontal	19 kHz to 72 kHz

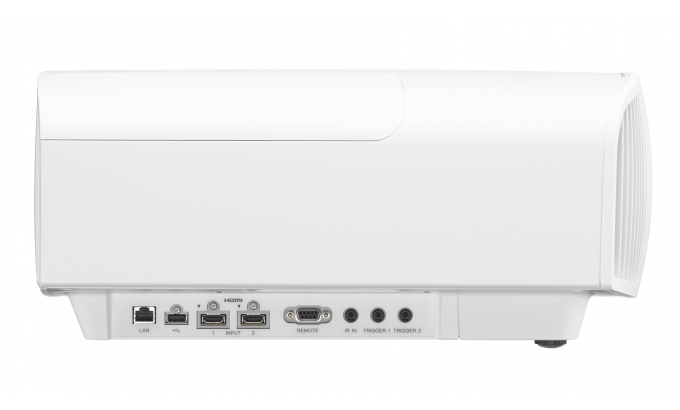

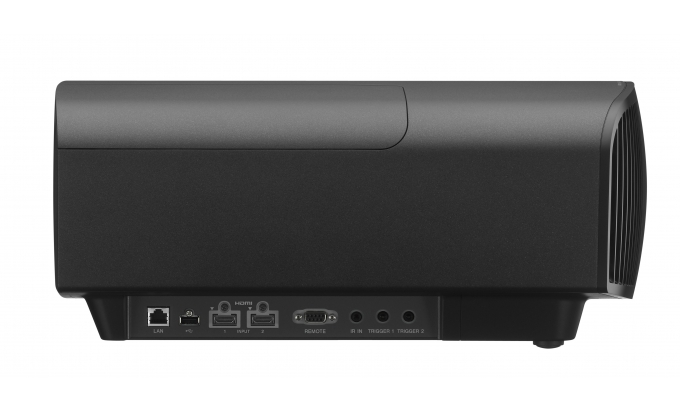

INPUT OUTPUT (Computer/Video/Control)

IO REMOTE	RS-232C, D-sub 9-pin (female)
IO LAN	RJ45, 10Base-T/100BASE-TX
HDMI 1 / HDMI 2	Digital (RGB/Y Pb/Cb Pr/Cr)
IR IN	Mini Jack
Trigger	Minijack, DC 12 V Max. 100 mA

Acoustic Noise

Lamp mode: Low

26 dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	495.6 x 195.3 x 463.6 mm 19 1/2 x 7 11/16 x 18 1/4 inches
Mass	Approx. 14 kg / 31 lb

Others

Projector Power requirements	AC 100 V to 240 V, 4.1 A to 1.7 A, 50/60Hz
Remote commander	RM-PJ24 Remote Commander (1)
Optional Lamp	LMP-H280
